How to Choose the Right ZF 8HP Transmission for Your Transmission Swap

---

1. Electronics Compatibility (TCU Support Comes First)

Before selecting a transmission, decide which controller (TCU) you're using. Each supports specific 8HP (and DCT) models, and not all work with every hardware variant. Choose your TCU before buying a transmission.

Supported Controllers and Their Transmission Compatibility:

TurboLamik:

• 8HP45, 8HP50, 8HP70 (electronic shifter only), 8HP75, 8HP90

• Beta: 8HP55, 8HP95, 8HP51 (with 8HP50 valve body)

• Notes: Most flexible and powerful standalone 8HP controller. Supports CAN or internal torque calculation.

CanTCU:

• BMW F-Series Gen 1 (8HP45/70/90)

• BMW F-Series Gen 2 (8HP50/75/95)

• BMW G-Series Gen 2 (8HP50/75)

• BMW G-Series Gen 3 (8HP51/76) — requires 3rd party immobilizer bypass

• VAG 8HP55 (Gen 1) - requires bench flash

• BMW DCT (GS7D36SG / GS7D70SG)

• Notes: Strong BMW support.

MaxxECU:

• 8HP45, 8HP70, 8HP90 (GEN1 only, requires TCU reflash)

• Beta: 8HP55 (AWD)

• Not supported: 8HP50 / 8HP75

• Notes: Only specific TCU hardware numbers are supported.

---

2. Understand the 8HP Transmission Strength Ranges

ZF 8HP transmissions are grouped into three main families based on torque capacity:

8HP4x / 5x Series – Light to Medium Duty:

• 8HP45, 8HP50, 8HP51, 8HP55 (~450–550 Nm)


8HP7x Series – Heavy Duty:

• 8HP70, 8HP75 (~700–750 Nm)


8HP9x Series – Ultra Heavy Duty:

• 8HP90, 8HP95 (~900–1000+ Nm)


These are figures from ZF for factory applications with warranty. Evidence has shown each varient can handle significantly more torque than rated by ZF, espciecially with effective tq reduction strategies during shifting.

---

3. Bellhousing Compatibility (or Adapter Solutions)

First priority: Make sure your know which 8hp the adapter kit will fit.

Bellhousing patterns are OEM-specific. Even two 8HP70s (e.g., from a BMW N57 and an N63) differ in bolt pattern, starter location, and torque converter pilot depth.

Common OEM Bellhousing Patterns:

• BMW: N/S/B series engines (all have different fitment)

• Dodge/Jeep: Gen 3 HEMI

• VAG/Audi: Longitudinal turbo and V6/V8 engines

• Jaguar/Land Rover: AJ-V8, diesel V6

If you're not using a native fit, you'll need:

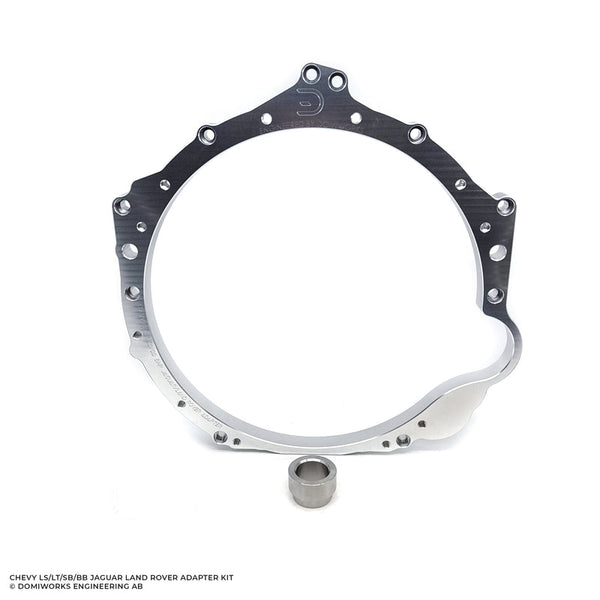

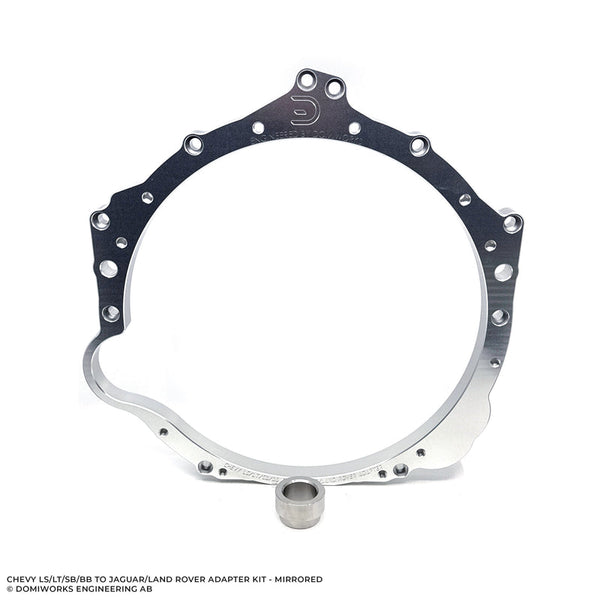

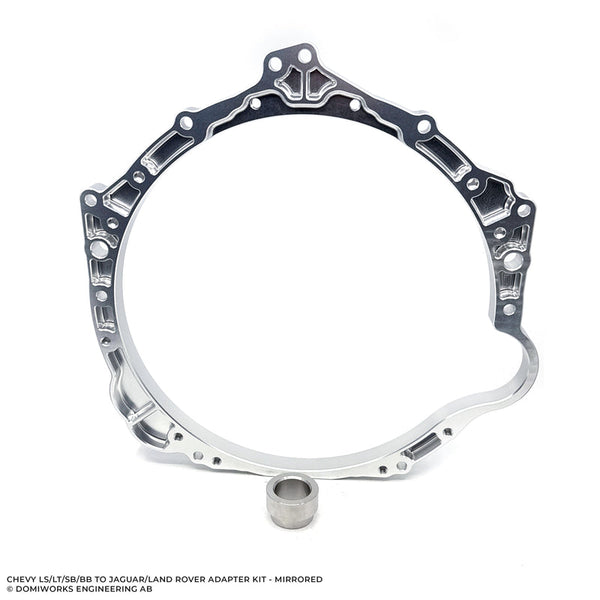

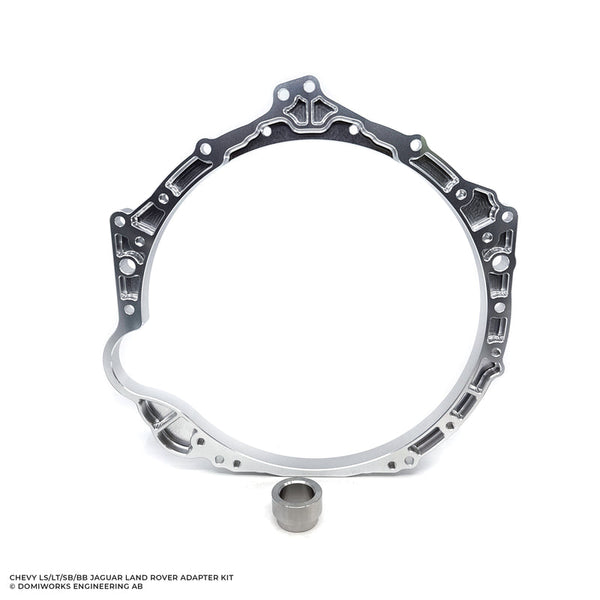

• An adapter plate (engine block to bellhousing)

• Crank spacer or custom flexplate to converter adapter

• Pilot bushing or custom converter hub

⚠️ Always confirm the adapter was designed for your exact 8HP version.

---

4. Transmission Fitment and Output Compatibility

Even if electronics and bellhousing are sorted, make sure the 8HP physically fits:

• Tunnel clearance: 8HP90/95 are larger and may require modifications

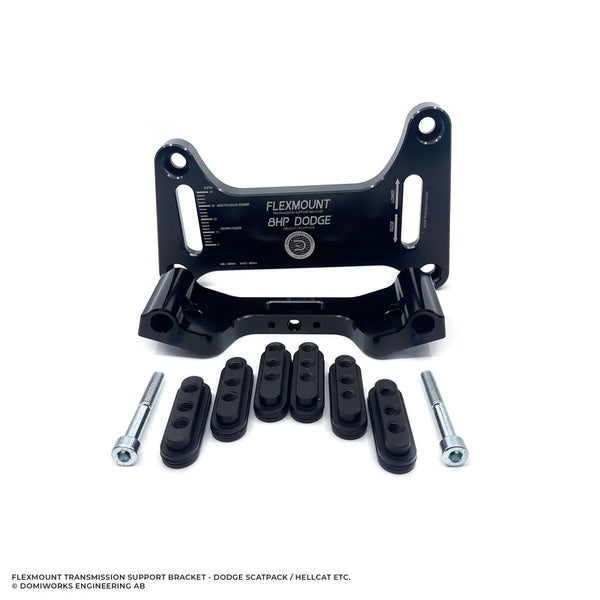

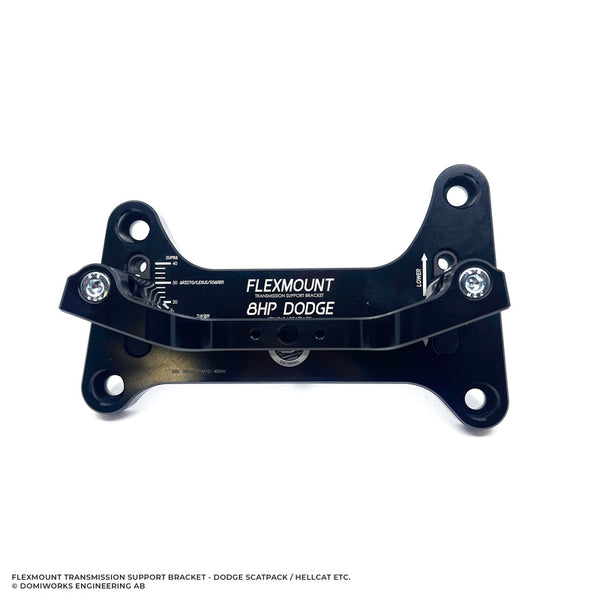

• Mounting bosses: Rear mount patterns vary

• Shifter location: Some require bracket or loom relocation

Output Flange Compatibility:

• BMW: 3-bolt flange (there different PCD versions)

• Dodge: Slip yoke or large flange

• Audi/Jaguar: Large offset flange

Adapters are available to convert to standard U-joints or slip-yoke driveshafts.

---

✅ Summary: Step-by-Step Transmission Selection

Choosing the right 8HP transmission for your swap doesn’t start with the gearbox — it starts with the controller. Here’s the proper sequence:

1. Choose Your Controller (TCU)
   Determine whether you're using TurboLamik, CanTCU, or MaxxECU — each supports different 8HP variants.

2. Identify the Supported 8HP Models
   Based on your TCU, select from the list of compatible transmissions (e.g., 8HP50, 8HP70, 8HP90).

3. Find a Transmission That Matches Your Engine Adapter
   Adapter kits are designed for specific bellhousing patterns — so your chosen 8HP must match the kit (e.g., BMW N57 8HP70, you will be looking for a N57 8hp70, this adapter will not bolt to a BMW N63 8hp70).

4. Consider Physical Fitment in Your Chassis
   Check tunnel space, crossmember compatibility, output shaft clearance, and driveshaft angle before committing to the install.

Following these steps helps you avoid costly mismatches and wasted time — and sets your swap up for a smooth, reliable result.
