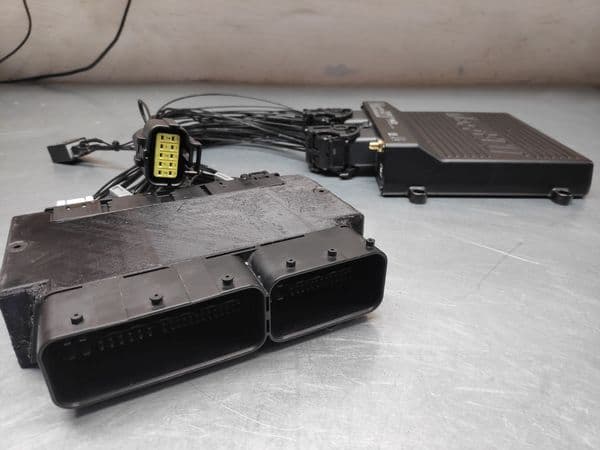

The MaxxECU PnP kit for the BMW N54 allows you to gain full control over the engine while allowing easy fitment into your car, be it the original car or after an engine swap.
Check our wiki N54 Support page for more details - PNPECU Wiki N54 Support page
Ignition options:
This version of the adapter can work with aftermarket and OEM coils. Please note there is an internal switch which must be selected correctly before trying to fire the coils. See for info - https://www.gstuning.net/wiki.php?lang=EN&wiki=PNPECU_V3_IGBT_Settings
Some aftermarket GTR/VAG/R8 coil looms available for the OEM ECU will not be compatible with a MaxxECU! Contact the coil conversion manufacturer to verify that their coil loom is compatible with logic 0-5v signals.
This is for port injection converted vehicles ONLY. The direct injection no longer works and GDI Injectors should be removed and blanks fitted. All PFI injectors are supported.
The port fuel injector harness is available as an option. Otherwise the male connector for the break out is here
Alternator, Oil level, Oil Temperature and Waterpump BSD control is built into the adapter.
Supported OEM functionality:
- Alternator voltage control (BSD)
- Oil level and temperature monitoring (BSD)
- Waterpump temperature control (BSD)
- Electric thermostat
- Electronic throttle body
- Vanos, Intake and Exhaust
- E46/E9x CANBUS
- 1 x OEM WBO2 LSU4.9 (Race) 2 x OEM WBO2 LSU4.9 (Pro)
- Electronic FAN PWM
- Both OEM wastegate solenoids
- EKPM3 Control
- DCT Support via CANBUS
Kit contents :

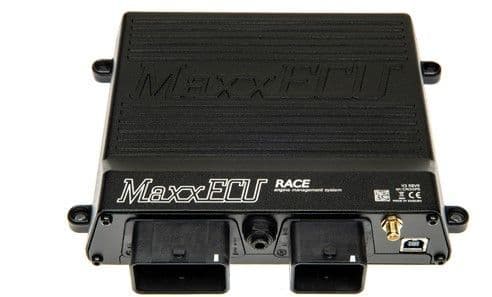

- MaxxECU
- Wiring adapter
- Spare terminals and connectors
- ECU Pinout information
All variants :
- Sequential fuelling and ignition
- Built in wideband LSU
- 400kpa map sensor
- CAN bus
- Internal logging
- Launch control
- Antilag
- Traction control
- Shift cut
- Vanos control
- Flex fuel
- NOS multiple stages
- Boost control
- Pneumatic dragrace boost control
Products Included In This Package
PLEASE NOTE THE PNP ECU ADAPTER IS MADE TO ORDER BY PNP ECU AFTER PAYMENT IS MADE
