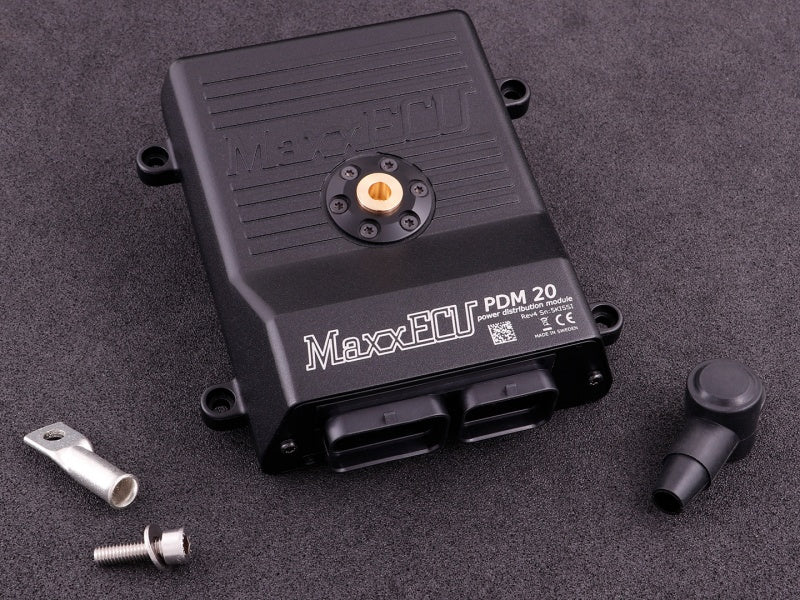

MaxxECU PDM20 with accessories

MaxxECU PDM20 with accessories

 To get all functions, you need to complete with harness 2 (knock, E-Throttle etc).

• More information




  The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way.



  • Max 230A.
  • 20 outputs (8x25A, 8x15A, 4x8A).
  • 7 digital / analog (0-24V) inputs.
  • All outputs can be PWM controlled.
  • Dedicated +5V power supply and sensor ground.
  • CAN bus for communication and setup management with MaxxECU MTune PC software.
  • Overcurrent protected adjustable levels with automatic restart with soft start option.
  • Warning levels for under / over currents.
  • Works with all MaxxECU devices.
  • Error code handling.
  • Support for CAN keypads.
  • Built-in energy saving mode that draws only 0.004A.
  • For high loads, outputs are connected in parallel.

Products Included In This Package

1 x 2098
MaxxECU PDM Unit

1 x 2097
MaxxECU PDM20 Accessories

1 x 2108
MaxxECU PDM20 wiring diagram (printed)
