MaxxECU SPORT PREMIUM PACKAGE (ECU, harnesses, accessories and LSU 4.2)

MaxxECU SPORT PREMIUM (ECU, harnesses, accessories and LSU 4.2)

More information

MaxxECU SPORT, based on our market leading MaxxECU V1 and uses the same easy to use, yet powerful MTune software. Fast Facts:

• Controls up to 6 cylinders sequentially (12 in wasted spark).
• Built-in 400kPa MAP-sensor.
• Wideband lambda directly into MaxxECU without external electronics.
• Fast and reliable USB PC-communication.
• Bluetooth
• 2 trigger inputs.
• IAT, TPS, CLT analog inputs.
• Built-in wideband (LSU 4.2 or 4.9).
• Built-in 400kPa MAP-sensor.
• E-Throttle support.
• 2 extra analog temperature inputs.
• 2 extra digital inputs.
• 6 injector outputs (high/low impedance).
• 6 ignition outputs (no internal amplifiers).
• 7 extra flexible outputs (GPO).
• 2 extra motor outputs. GPO 10-11 (2A)
• CAN bus
• Aluminium case
• MTune PC-software with USB connection.
• Superfast Cortex M3 120Mhz main processor.

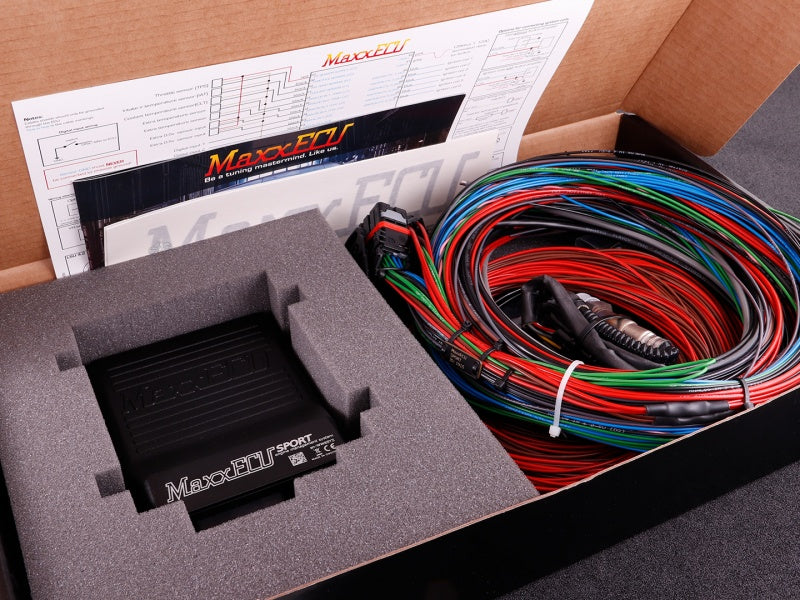

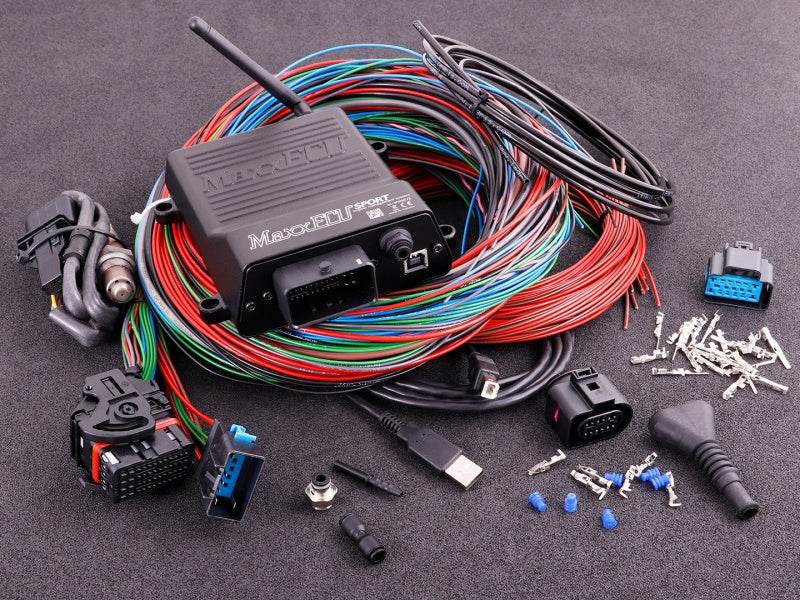

Products Included In This Package

1 x 1913
MaxxECU SPORT unit without accessories



1 x 1915 MaxxECU Sport Cable Harness

1 x 107
Lambda Sensor Bosch wideband lambda LSU 4.2

1 x 894
Connector 6-way socket housing (LSU 4.2 wideband sensor)

1 x 927
Connector 12-way socket housing GT150 (fits MaxxECU harness)

1 x 949
MaxxECU Bluetooth mobile antenna

1 x 924
MaxxECU USB PC cable 1.5m (STREET/V1/RACE)

1 x 928
MaxxECU hose kit (MAP sensor incl nipples)

1 x 1052
MaxxECU extra cable for installations

1 x 1852
MaxxECU Quick Guide (English)

1 x 1912
MaxxECU SPORT wiring diagram (printed)
