8HP Oil Cooler Adapter to suit transmissions from the following BMW models
B57 8HP75
S58 8HP76

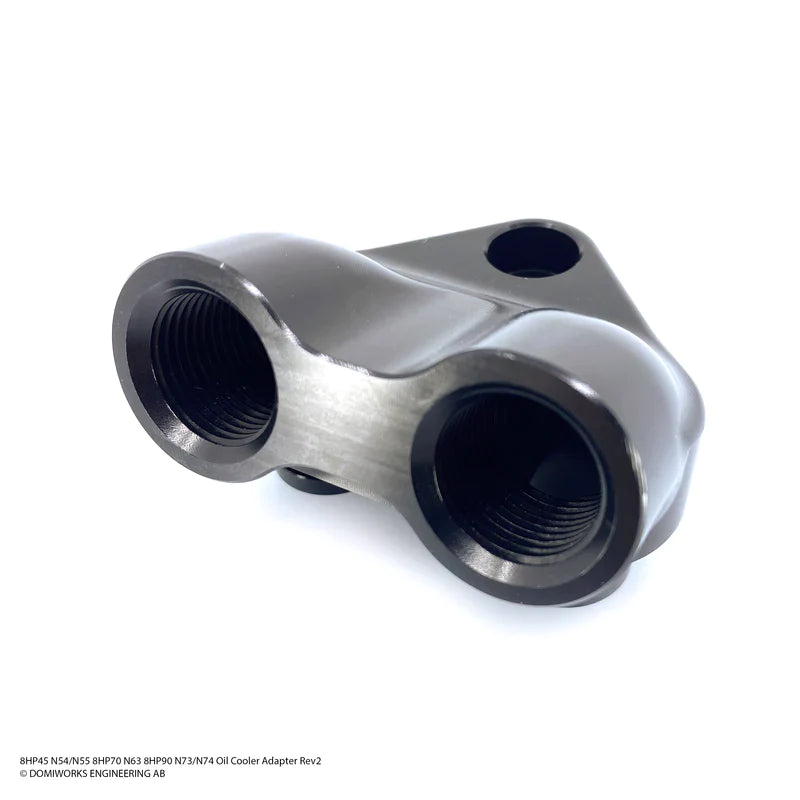

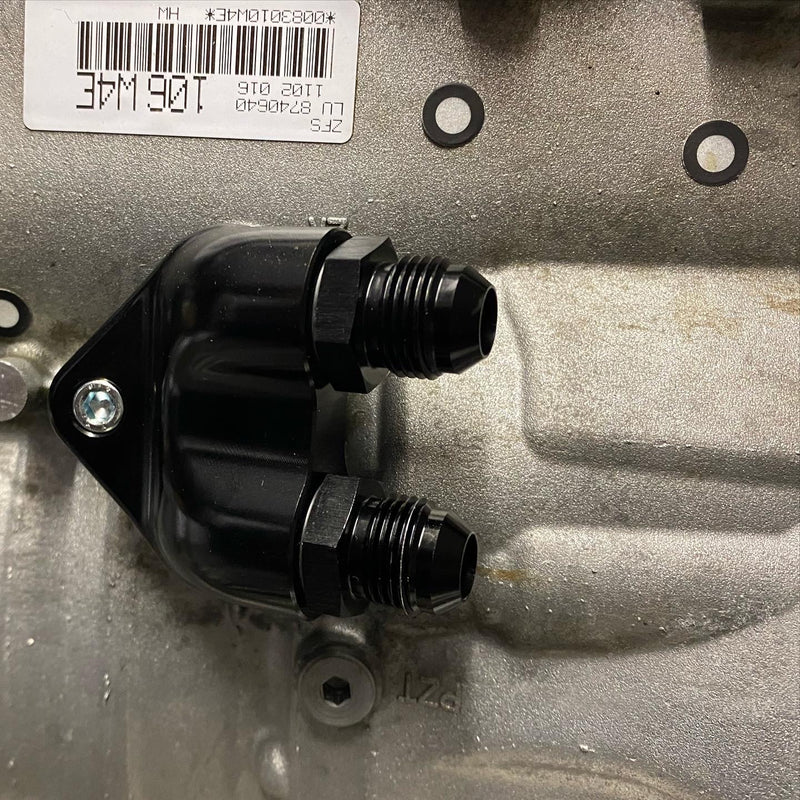

An updated slimmer and lightweight design to follow the gearbox as close to the body as possible. Converts the gearbox oil outputs to two AN8 threaded output, thread ¾-16.

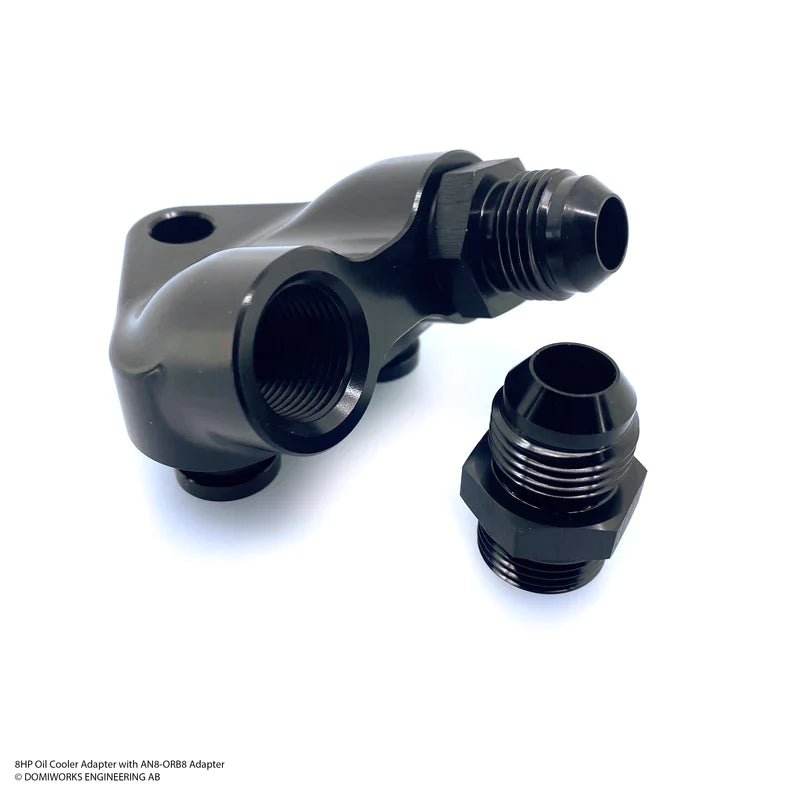

Use any ORB8 fittings to whatever output your application finds suitable (AN6, AN8, AN10 etc.) We offer high quality AN8 fittings as an option.

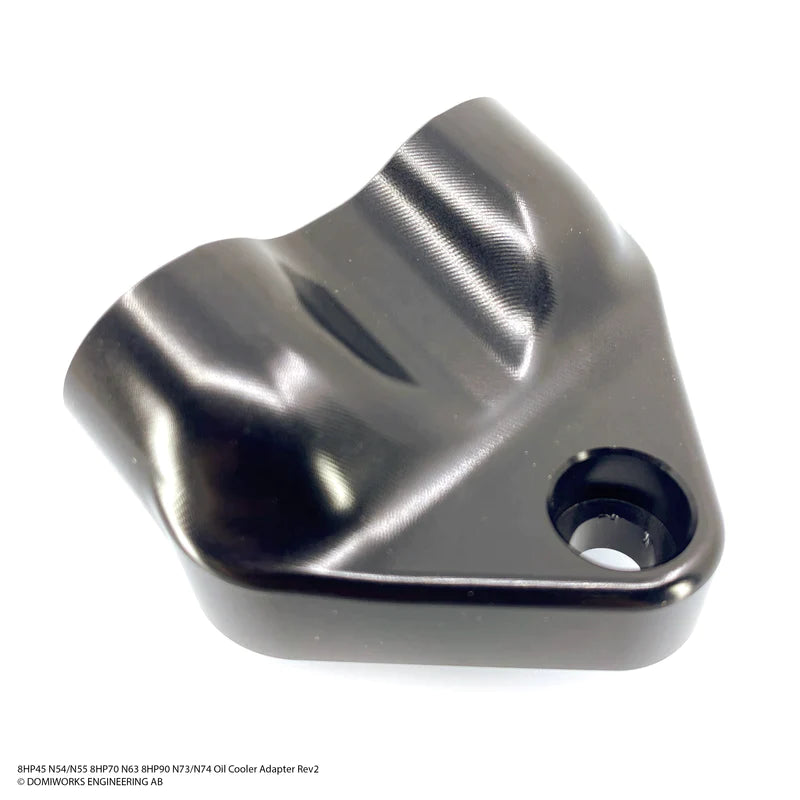

Made with high grade alumium and beautifully 5-axis CNC machined gives a smooth and attractive look, no bulky straight lines here 😉 Big bore internal oil passages to ensure maximum flow. Anodizied black and laser engraved for a premium feel and experience. We would like to claim this it the best performing, most lightweight and most beautiful looking oil cooler adapter on the market.

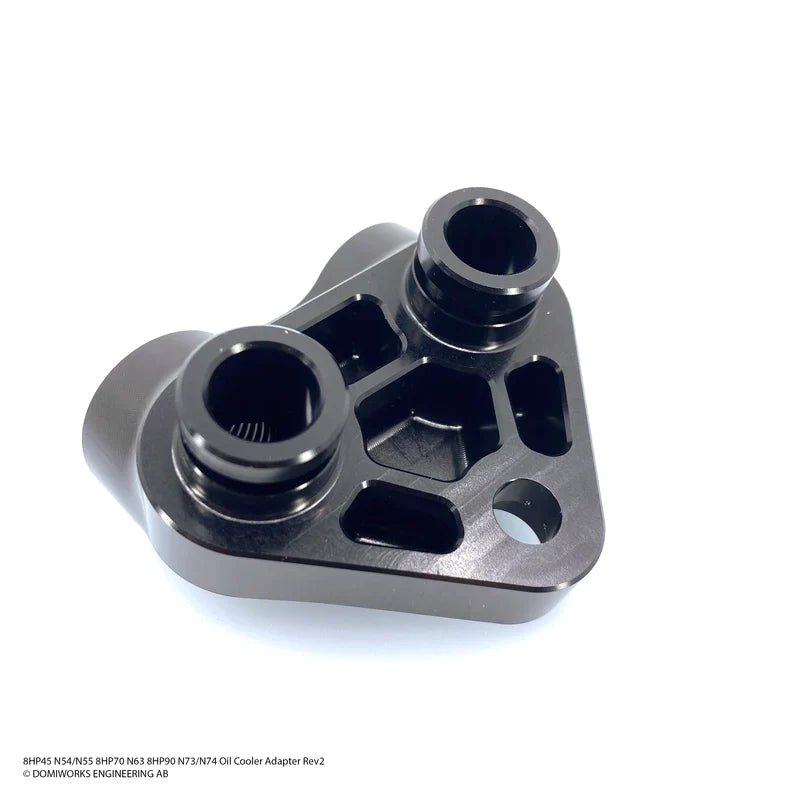

This adapter has 18 mm bores, ofset holes and M6 mounting bolt. Comes with bolt and o-rings, high quality AN8 adapters included.
If you are unsure of the correct sized adapter you need, don't hesitate to contact us.
After 3D scanning a lot of gearboxes we found that almost every gearbox had its own dimensions. Different bore sizes, mounting bolt size, hole of sets, no hole offset. Not sure what the ZF engineers been up to be honest, so if you have any doubts about fitment feel free to get in touch.
