V2 Toyota Landcruiser 76 78 79 SERIES 8HP Auto conversion
This base 900nm (torque at crank) kit includes the following:

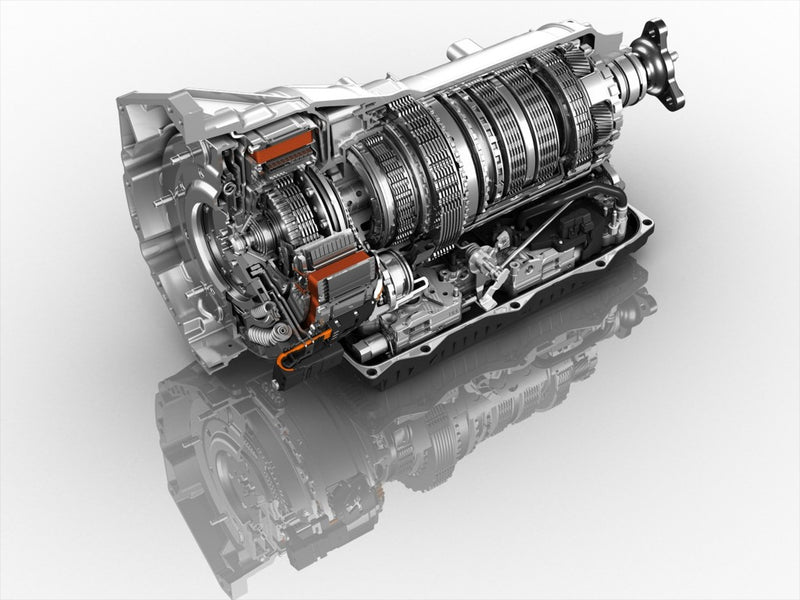

Reconditioned BMW ZF 8hp70X
Genuine Toyota VDJ Flexplate, Counter Weight and Bolts

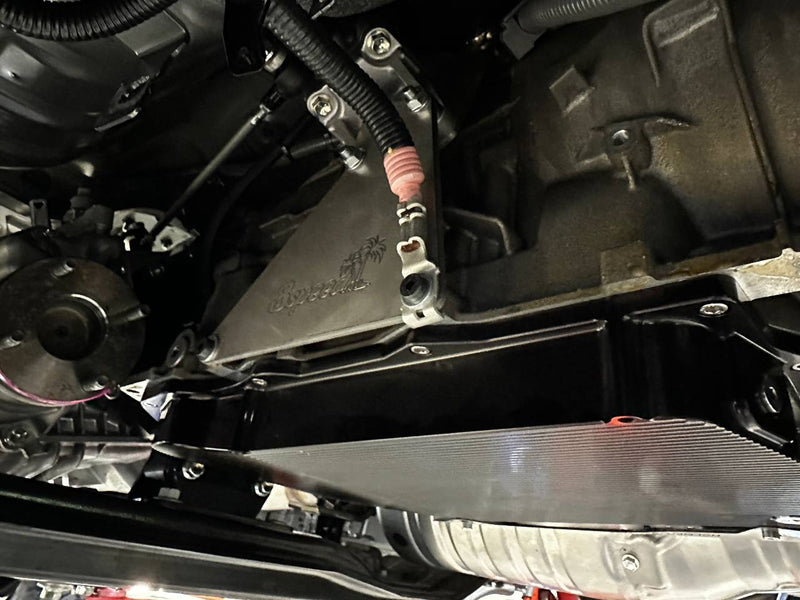

Billet Engine To Transmission Adapter
Billet Torque Converter Adaptor To Suit 8HP Torque Converter

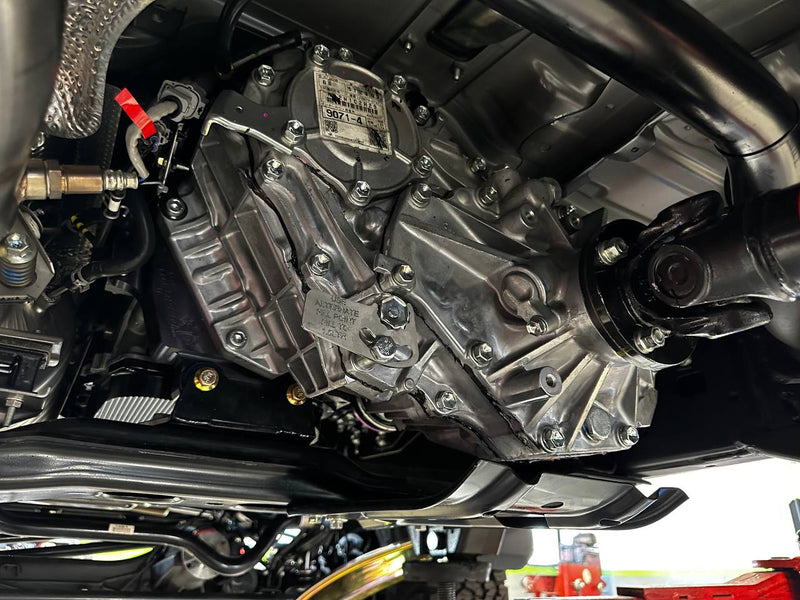

Billet Transfer Case Adapter With Encapsulated Mounting System
TurboLamik TCU 2.0

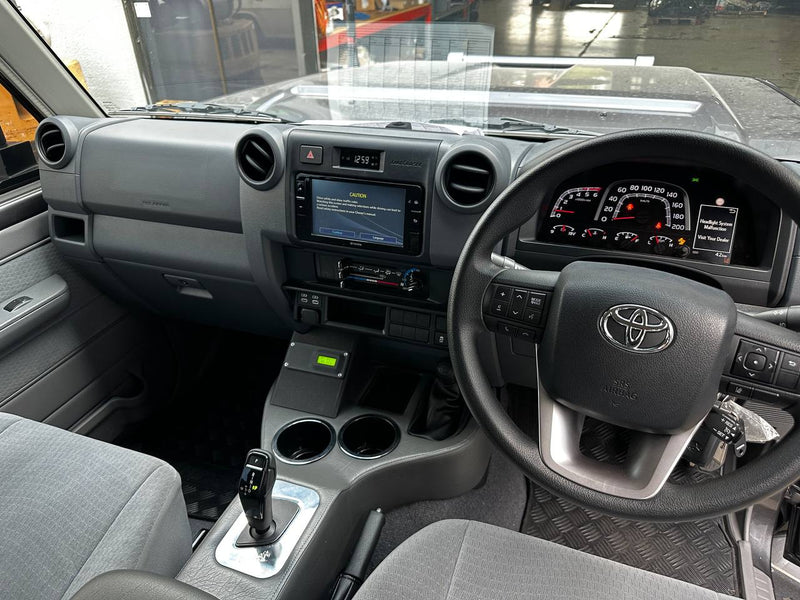

TurboLamik TCU Multifunction Display For Gear Target, Trans Temp & Error Codes

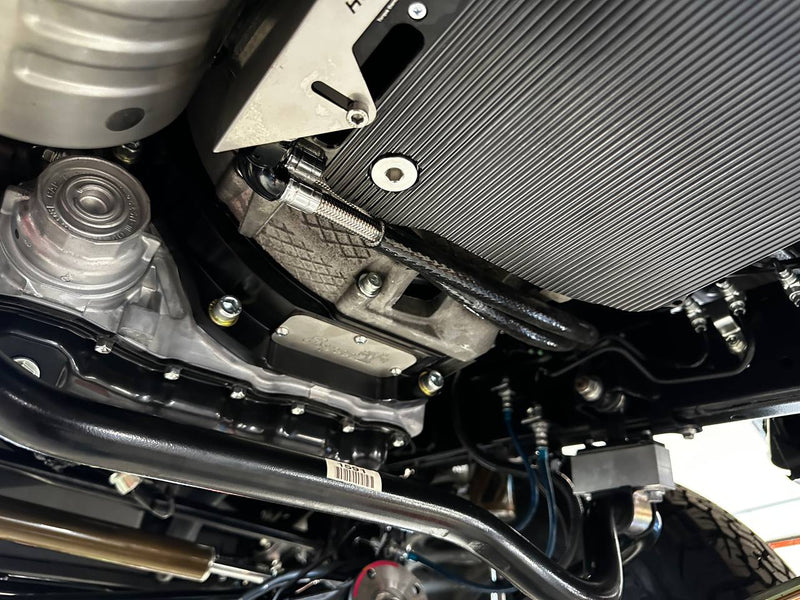

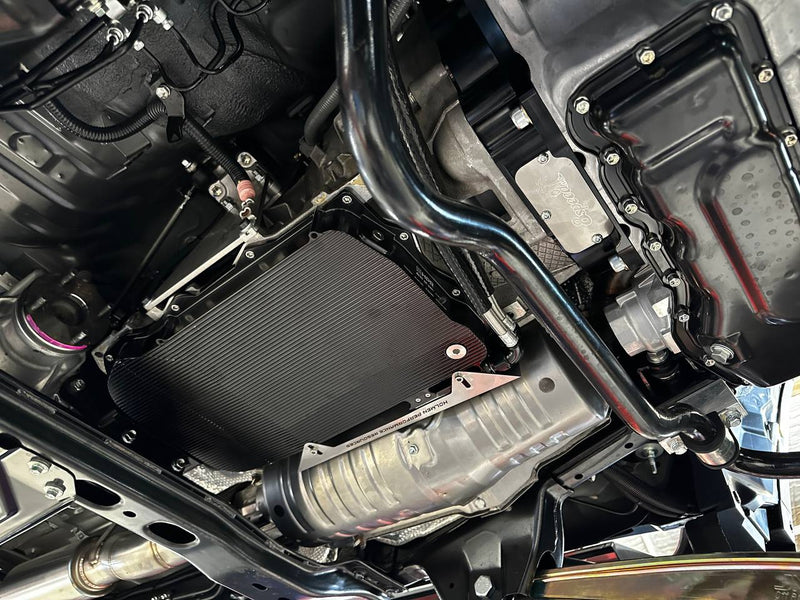

Billet 8hp Oil Pan For Extra Capacity And Damage Resistance
8Speed.au VDJ79 Wiring Harness

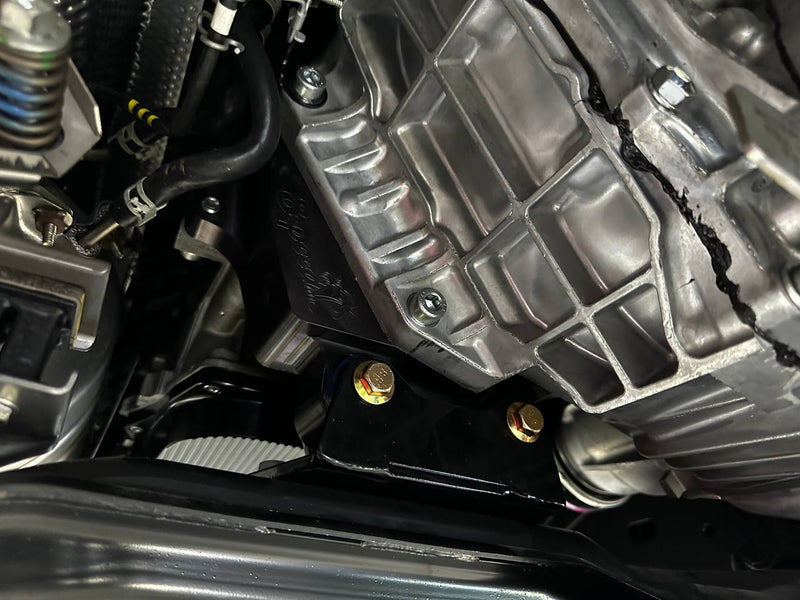

Heavy Duty Trans Mount To Cross Member Adapter
Brand New Transfer Case Gear With 8HP 43 Spline
Stainless Steel Low Range Shifter Bracket Assembly

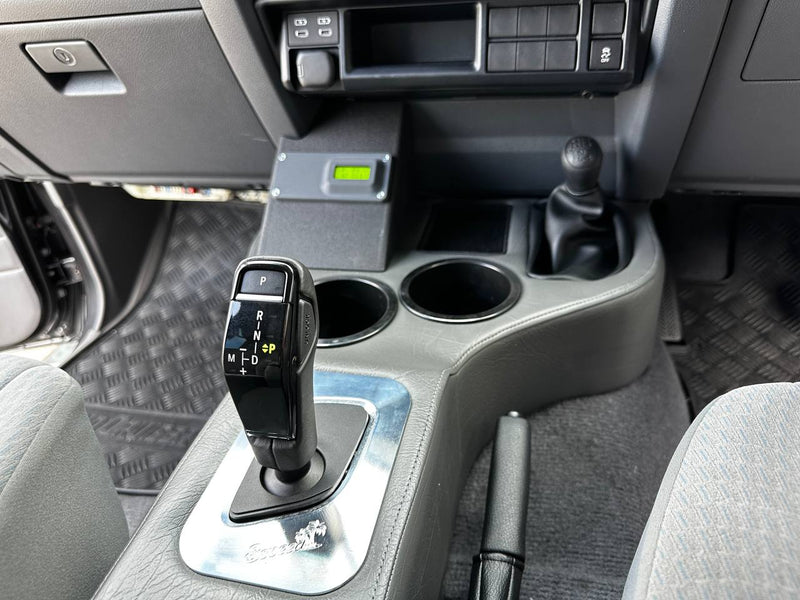

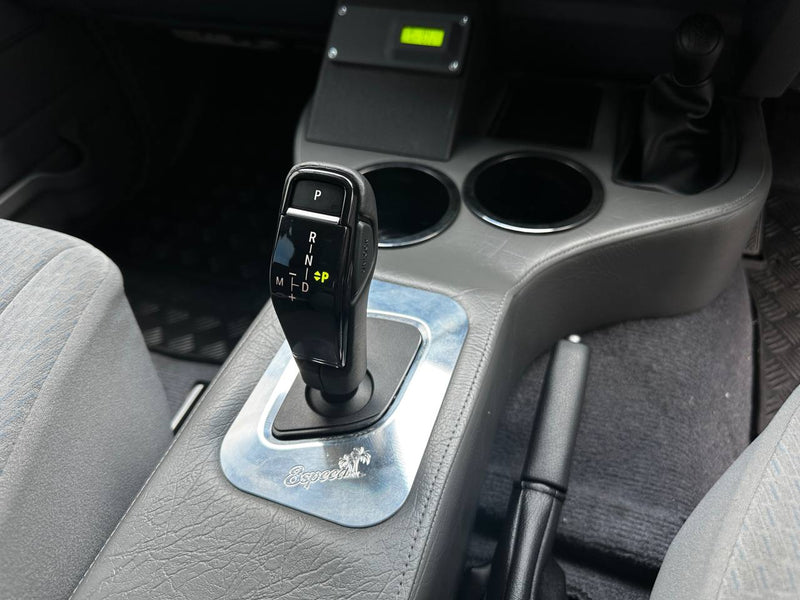

Genuine GR Racing Toyota A90 Gear Selector
Selector Provides Access To 3 Drive Modes. Automatic, Towing & Manual Mode
Internally Modified 8hp TCU In Preparation For TurboLamik TCU
Motorsport Grade Transmission Fluid Thermostat
Motorsport Stainless Steel Braided & Crimped Oil Cooler Lines
The base kit supports up to 900nm at the engine. This comes with a 12 month warranty.
Vehicles exceeding the 900nm at the crank must consult with an installer in regards to an upgrade package to suit your needs. The 1200nm at the crank package will cover most vehicles and is also covered by a 12 month warranty.
For vehicles exceeding 1200nm at the crank, we do have a kit that supports up to 1500nm. This does require a custom engine ecu flash. Which the controller uses for 2 way feedback between the engine and transmission. Unfortunately above 1200nm at the crank there is no warranty. However testing shows the transmission when used appropriately will withstand the 1500nm loads. The reality is that sort of power level is enough to destroy any part of the drivetrain if used in an unsafe manner.
The 8 speed kit will not work with factory cruise control. If the vehicle has factory cruise control an aftermarket cruise module will be required for the install of the 8 speed transmission. These start at $795 and use the factory cruise stalk. Please note this will mean multimap switching with the cruise control stalk will no longer work.
To purchase this kit please contact one of our dealers below or contact us via the contact form on this web store and we can facilitate a dealer to assist in purchase. This allows the dealer to handle the sale and install of the kit start to finish.
Note: Installation fees, oils, labour, is extra and at the discretion of your local dealer.
Current wait time is 4 months after kit is paid in full.
Dealers/Installers:
Victoria - Powertorque - 0417558799 - powertorquevic@gmail.com
NSW - Tuneworks - (02) 4983 2851 - info@tuneworks.co
Northgate, QLD - Nikol Autoshop - (07) 3256 8592 - info@nikol.com.au
Mackay, QLD - Proximity Motorsport - (07) 4957 4674 - sales@proximitymotorsport.com.au
Ormeau, QLD - Innovate 4x4 - (07) 5549 1972 - admin@innovative4x4.com
Wangara, WA - Dynamic diesel performance - (08) 9308 3544 - sales@dynamicdieselperformance.com
Balcatta, WA - Gturbo - (08) 9240 8715 - sales@gturbo.com.au
