MaxxECU

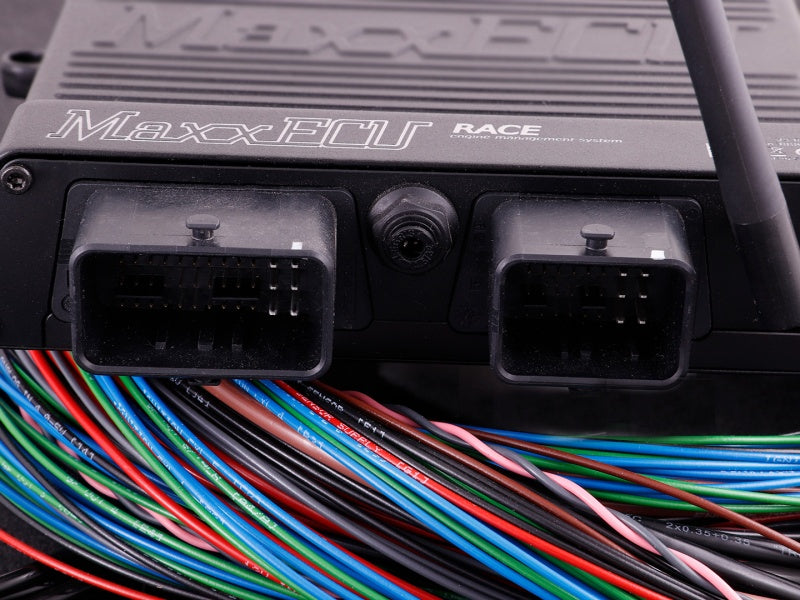

MaxxECU RACE STANDARD PACKAGE

$3,295.90 AUD

MaxxECU RACE STANDARD (ECU, harness 1 and accessories)

 To get all functions, you need to complete with harness 2 (knock, E-Throttle etc).

More information

MaxxECU RACE, based on our MaxxECU PRO and uses the same easy to use, yet powerful MTune software.

Specification:

  • All 3-12 cylinder engines (4-stroke)
  • Up to 8 cylinders fully sequentially
  • Up to 12 cylinders in wasted spark
  • Lambda (WBO) sensor. Supports Bosch LSU 4.2, 4.9
  • 2 trigger inputs. VR or digital. Automatic trigger level detection
  • 2 extra temperature sensors
  • 2 knock sensor inputs
  • 6 extra 0-5V inputs
  • 4 extra digital inputs (VR / hall) or switches
  • 8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness
  • 8 peak/hold injector outputs
  • 8 ignition outputs
  • 9 extra LOW DRIVING outputs for additional features
  • 2 extra +12V DRIVING outputs
  • 4 extra motor outputs
  • Full MaxxECU RACE Features - Here

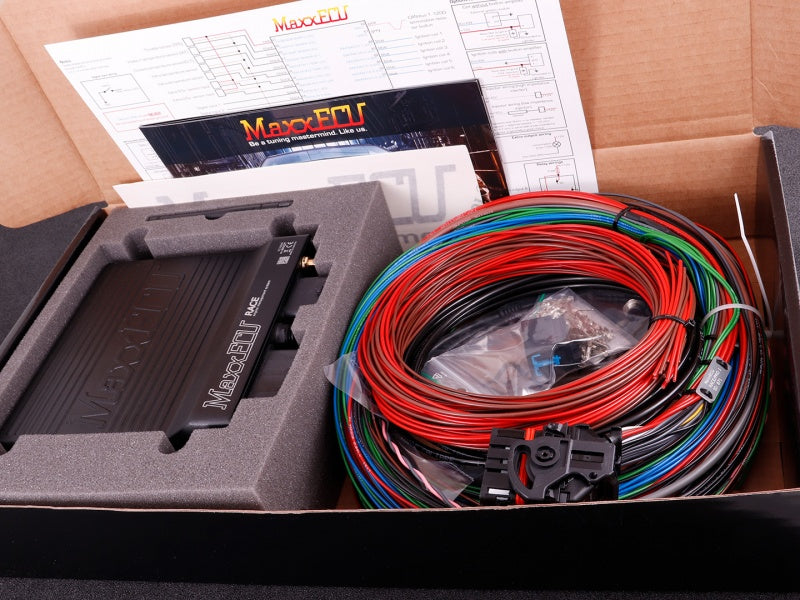

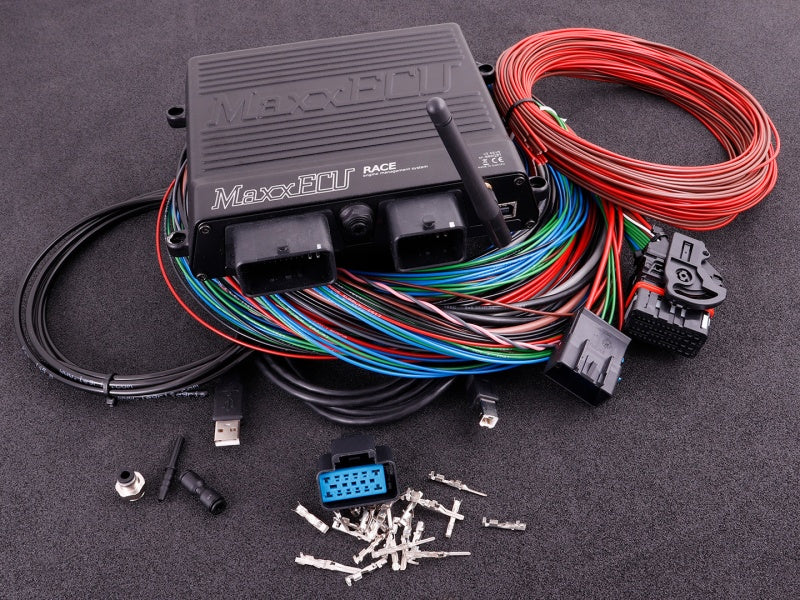

Products Included In This Package


alt title
alt title

1 x 871
MaxxECU V1/RACE/PRO flying lead wiring harness connector 1




alt title

1 x 927
Connector 12-way socket housing GT150 (fits MaxxECU harness)



alt title

1 x 949
MaxxECU Bluetooth mobile antenna



alt title

1 x 924
MaxxECU USB PC cable 1.5m (STREET/V1/RACE)



alt title

1 x 928
MaxxECU hose kit (MAP sensor incl nipples)



alt title

1 x 1052
MaxxECU extra cable for installations



alt title

2 x 1235
MaxxECU sticker



alt title
1 x 1852
MaxxECU Quick Guide (English)



alt title
