Terminated Engine Harness - GM LS GEN III/IV including MaxxECU RACE kit

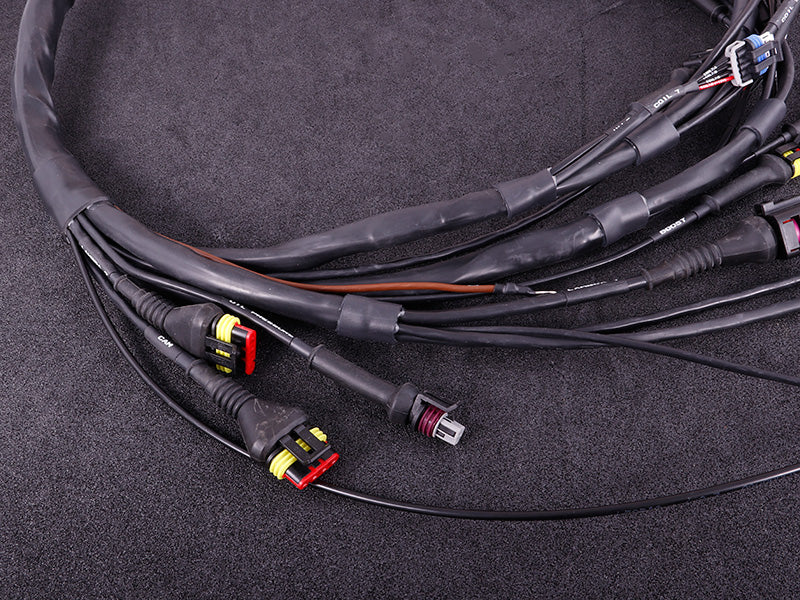

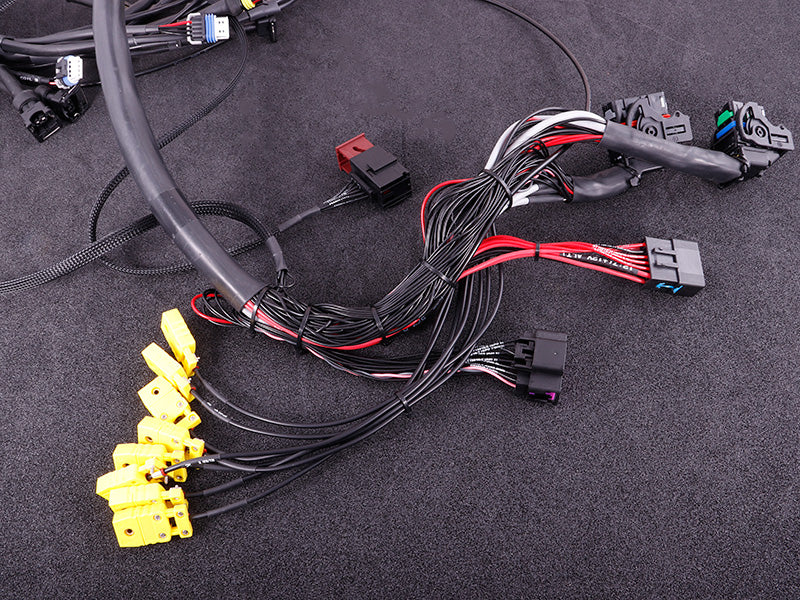

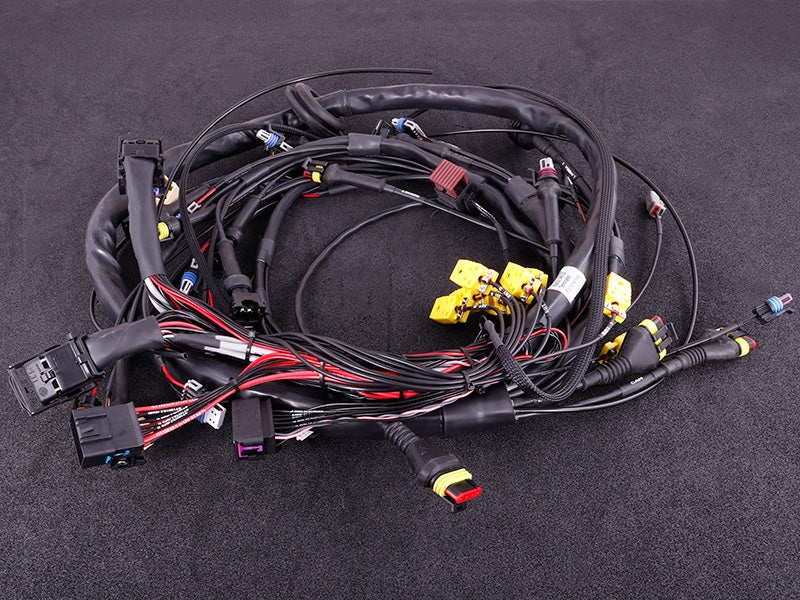

Terminated engine harness - GM LS GEN III/IV including MaxxECU RACE kit

More information

GEN III:

• 5.7L LS1/LS6

GEN IV:

• 6.0L LS2
• 6.2/7.0 LS3/LS4/LS7/LSX/LS9

• For E-Throttle and Hella E-pedal
• Prepared for turboapplication with an boost solenoid connector
• Bosch JPT injector connectors
• Uses stock coils
• To be used with GEN IV knocksensors
• MAP sensor hose inside harness
• 8 pcs EGT connectors in harness
• Including trigger/cam adapters for GEN III and GEN IV sensors
• Including BOSCH and Mitsubishi alternator adaptors
• Easy to rewire to be used without E-Throttle if needed

• More information on GM LS Terminated Solution - Here

* Technical & Wiring Information - Here

Products Included In This Package

1 x 1954
Terminated engine harness - GM LS no accessories

1 x 1783 MaxxECU RACE unit without accessories

1 x 107 Lambda Sensor Bosch Wideband LSU 4.2

1 x 1959
Adapter Cable GM LS Harness Gen3 Cam Trigger

1 x 1957 Adapter Cable GM LS

1 x 1960 Adapter Cable GM LS Harness Gen4 Cam Trigger

1x 1958 Adapter Cable GM LS Harness GEN4 Crank Trigger

1 x Adapter Cable GM LS Harness Bosch Alternator

1 x 1956 Adapter Cable GM LS Harness Mitsubishi Alternator

1 927 Connector 12-way Socket Housing GT150 (Fits MaxxECU Harnes)

1 x 1703 Connector 16-Pin Delphi GT150

1 x 924
MaxxECU USB PC cable 1.5m (STREET/V1/RACE)

1 x 949 MaxxECU Bluetooth Mobile Antenna

2 x 1235
MaxxECU sticker

1 x 1852
MaxxECU Quick Guide (English)
